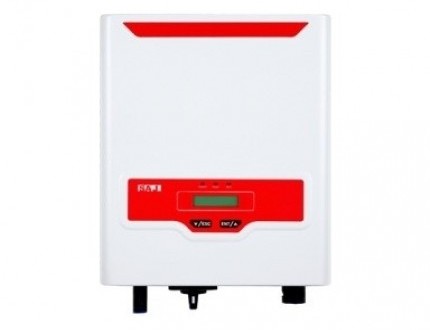

BIẾN TẦN HÒA LƯỚI (Inverter On-gird)
- Công nghệ Tranformerless ( không biến thế), Hiệu suất Mppt 99,5%
- Dãi điện áp vào rộng 60V-550V(Có thể sử dụng từ 2 tấm pin)
- Chuẩn IP65, theo dõi & cài đặt từ xa bằng IOS, Android,PC.
- Độ bền trên 25 năm, bảo hành 5-10 Năm.
| Type | Sununo Plus 1K | Sununo Plus 1.5K |
| Input (DC) | ||
| Max. DC Power [W] | 1200 | 1800 |
| Max. DC Voltage [V] | 450 | |
| MPPT Voltage range [V] | 60-425 | |
| Nominal DC Voltage [V] | 360 | |
| Start Voltage [V] | 70 | |
| Min. DC Voltage [V] | 50 | |
| Max. DC Input Current [A] | 11 | |
| Number of DC Connection Sets per MPPT | 1 | |
| Number of MPPT | 1 | |
| DC Switch | Optional | |
| Output (AC) | ||
| Rated AC Power [W] | 1000 | 1500 |
| Max. AC Power [W] | 1100 | 1650 |
| Rated AC Current [A] | 4.3 | 6.5 |
| Max. AC Current [A] | 4.8 | 7.2 |
| Nominal AC voltage/ range | 220V, 230V, 240V/180V-280V | |
| Grid frequency/ range | 50Hz, 60Hz/ ±5Hz | |
| Power factor [cos φ] | >0.99(full load) | |
| Total Harmonic Distortion [THDi] | < 3% | |
| Feed in phase/Connection Phase | 1/1 | |
| Efficiency | ||
| Max. Efficiency | 97.1% | 97.2% |
| Euro Efficiency [at 360Vdc] | 96.6% | 96.7% |
| MPPT Accuracy | >99.5% | |
| Protection | ||
| Internal Over-voltage Protection | Integrated | |
| DC Insulation Monitoring | Integrated | |
| DCI Monitoring | Integrated | |
| GFCI Monitoring | Integrated | |
| Grid Monitoring | Integrated | |
| AC Short Circuit Current Protection | Integrated | |
| Thermal Protection | Integrated | |
| Anti-island protection monitoring | AFD | |
| Interface | ||
| AC Connection | Plug-in connector | |
| DC Connection | MC4/H4 | |
| LCD/LED Display | LCD (16x2 Characters, Backlight) & LED (3 Lights) | |
| Display Language | English | |
| Datalogger & Communication | RS232 (Standard)/WiFi (Optional) | |
| General Data | ||
| Topology | Transformerless | |
| Consumption at Night [W] | <0.2 | |
| Consumption at Standby [W] | 6 | |
| Operating Temperature Range | -25°C to +60°C (45°C to 60°C with derating) | |
| Cooling Method | Natural Covection | |
| Ambient Humidity | 0% to 100% Non-condensing | |
| Altitude | Up to 2000m (without derating) | |
| Noise [dBA] | <15 | |
| Ingress Protection | IP65 (Indoor & Outdoor Installation) | |
| Mounting | Rear Panel | |
| Dimensions (H*W*D) [mm] | 315*260*120 | |
| Net Weight [kg] | 5.6 | |
| Standard Warranty [Year] | 5 (Standard)/10/15/20/25 (Optional) | |
| Certificates | IEC62109-1/2, IEC61000-6-2/3, IEC61683,IEC60068-2,IEC62116,IEC61717,PEA/MEA,NRS 097-2-1,UTE-C-15-712-1,VDE0126-1-1/A1, VDE-AR-N 4105, AS4777.2,AS4777.3,C-TICK,CQC NB/T 32004,G83-2,NBR 16149,NBR 16150,TF 3.2.1 | |
